APARAT ANESTEZIE ADS II – INFINIUM MEDICAL SUA

Descriere

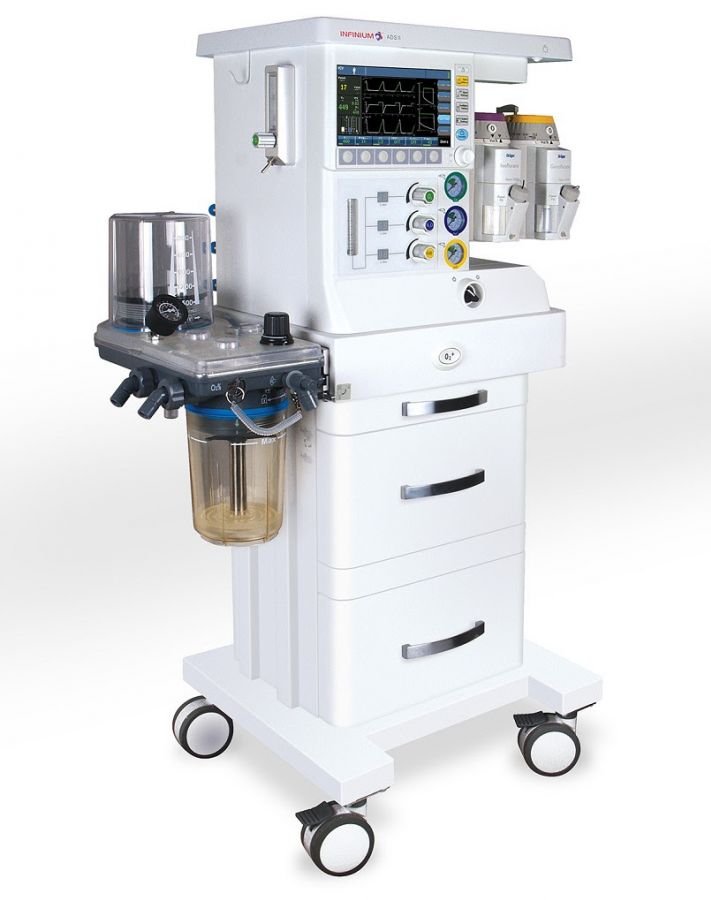

APARAT ANESTEZIE ADS II

Sistemul de anestezie ADS II este destinat ventilarii adultilor si copiilor in modul de volum controlat (VT intre 0 si 1500 ml) sau prin controlul presiunii (3 – 8 barr) in sali de operatie.

Gaze: N2O, O2(paramagnetic), halotani, isoflurani, sevoflurani .

Sistemul complet include:

– sursa tripla de gaze: O2, N2O, aer

– flowmetru aer, O2, N2O 0-1L/min; 1-10 L/min

– Monitor LCD 10.4” TFT color

Afiseaza: Paw, Ppeak, Pplat, Pmedie, Volume MV, Vt, Respiratia, FiO2, complianţa, forme de unda P-T, F-T, V-T si Curbe Wave &Loop: curbe P-T, V-T, Flow-T, P-V, F-V, P-F, freeze.

Alarme: Presiune min/max, Volume, Resp, FiO2, Apnea, PEEP high etc.

– Ventilator controlat cu microprocesor;

– moduri de lucru: adult, pediatric

– moduri de ventilare: IPPV, PLV, SIMV, Manual

– setari: touch key si buton navigator rotativ.

– frecventa ventilatie: 4-100 bpm

– I:E ratio: 2:1-1:8

– control presiune: 5-70 cmH2O

– Ppeep: 0-20 cmH2O

– platou inspirator: 0-60% Ti

– sensit trigger: 2-30L/min

– 2 tipuri de vaporizoare compatibile SELECTATEC pentru Halothane, Enflurane, Isoflurane, Sevoflurane.

– Sistem integrat de măsurarea gazelor

– AGSS

– Modul pacient;

– Cabluri de alimentare;
– Kit pentru adulti (circuit autoclavabil, circuit conector, filtre bacteriologice senzor de O2).

– Se cupleaza la instalatia de aer a spitalului.

Poate fi livrat cu unu sau două vaporizoare. Sistemul se livreaza cu un singur vaporizor.

The latest ADSII offers the same sturdy construction as previous models but now offers the latest advancements in anesthesia delivery and patient ventilation. The ADSII provides extremly accurate fresh gas delivery via electronic flowmeters. The ADSII ventilator has been upgraded with a larger 12.1 inch color screen with more ventilation modes and a user friendly software interface. Many advanced patient monitoring options are available with the ADSII particularly: Auto ID Anesthetic Agent Measurement, EtCO2, 12 lead ECG, Invasive Blood Pressures, and Cardiac Output. Further Specifications are listed below.

Ventilator

mode VCV，PCV，SIMV+VCV+PSV，SIMV+PCV+PSV，Manual, Standby

Tidal volume(VT) 20～1500 mL

Frequency (f) 1 ～ 60 bpm

I:E 3:1～1:6（Increment：0.5）

Ti 0.1～10 s（Increment：0.1 s）

Inspiratory pause (Tp) OFF，5%～50%

E-PEEP Integrated electronic PEEP OFF，4～30 cmH2O

Flow trigger (FTRIG) 1～15 L/min

Pressure control 5～70 cmH2O

Pressure support

Pressure Limit

5～60 cmH2O

PEEP+5～PEEP+70 cmH2O

Pneumatics

Gas supply Pipeline：O2, N2O and Air；Optional Yokes: 1x O2 ;1x N2O;

Pressure gauge Mechanical

Flowmeter electronic flow meters for O2, N2O and air； O2 and N2O linkage and N2O cutoff function

Bellows volume Adult，0～1500 mL，pediatric(optional)，0～300 mL

APL valve 2～70 cmH2O

CO2 Canister Volume

By-pass

1.5 L（1.35 Kg）

Automatic; change soda lime during operation.

bag/vent switch switch for manual ventilation and mechanical ventilation

Monitoring

C, R, VTE, VTI, MV, MVspn, f, fspn, I:E, Ppeak, Pmean， Pplat， Pmini

Waveforms; P-T, F-T, V-T, Loop V-P, F-V, F-P

Optional: SpO2, EtCo2, NIPB, IPB, CO, ECG (3,5,or 12 Lead), Agent ID
